Tensile Shade Structure for PSB Outdoor Tennis Court - Beihai, China


     Date Completed  November, 2018
     Location  Beihai, China
     Project Area  2800 square meters
     Membrane Material  PTFE
     Fabric Color  White
     Shape  Arc
     Structure  Q235 Steel, Hot Dip Galvanized
     Warranty  20 Years
     Delivery Time  About 30 Days after confirm deposit
     Payment  T/T, LC
     Brand  BDiR
     Place of Origin  Shenzhen, China


Tensile Shade Structure for PSB Outdoor Tennis Court - Beihai, China


Beihai, a famous historical and cultural city,  it is also a beautiful coastal city in China.
In November 2018, BDiR completed the construction of fabric structure tennis court in the Beihai Public Security Bureau. The project covers an area of 2, 800 square meters, with a length of 120 meters and a width of 30 meters. The project is a three-dimensional modeling of a large span steel truss fabric structure, which consists of a steel tubular column and a triangular truss, and is covered with imported PTFE membrane.
PTFE membrane have a long service life and good self-cleaning properties, and the rainwater can be rinsed clean. During the day, the PTFE material can isolate the strong ultraviolet rays, and the sunlight that is irradiated to the roofing can be transmitted to the website, which can reduce the resource loss for lighting and achieve the effect of energy saving and environmental protection.
The tennis court lightweight structures can help the military to exercise better and now it’s an iconic construction there. We are proud to have done such a project.


    • √. Large Span: Tensile Structures can create an expansive covered area, exceed to 200m.

    • √. Unique Design: Tensile fabric Structure gives architects, designers, and engineers the opportunity to experiment with form and create visually exciting and iconic structures.

    • √. Various Shape: Changeful supporting structure can make lots of different shapes of tensioned structure with flexible membrane.

    • √. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs.

    • √. Easy to Install: Faster and more cost-effective in comparison to traditional construction projects.

    • √. Weatherproof: Durable and designed to withstand even the most severe weather conditions. Provide protection from both the rain and sun.

    • √. Excellent Durability: Fabric tensile Structure is characterized by durability and longevity, can be built in different areas around the world, from the frigid arctic pole to the scorching desert heat.

    • √. ECO Friendly: Have high sun reflectivity and low solar absorption. As a result, less energy is used in the building, ultimately reducing the cost of electricity.

    • √. Low maintenance Needs: Tensile membrane Structures require minimal maintenance for clients, whether use of PVC, PVDF, PTFE or ETFE.

    • √. Outstanding Natural Daylighting: Membrane is translucent, In daylight, tension structures could offer rich soft diffused naturally daylight space, and at night, artificial lighting can make it bright and colorful.

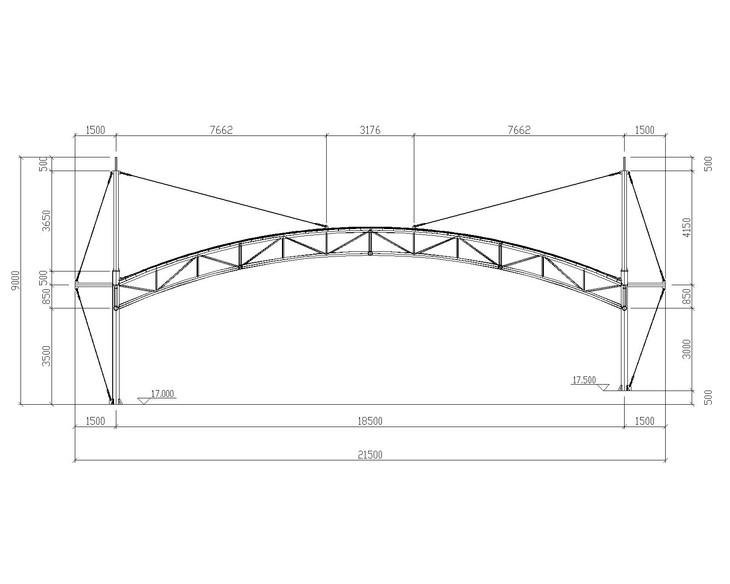

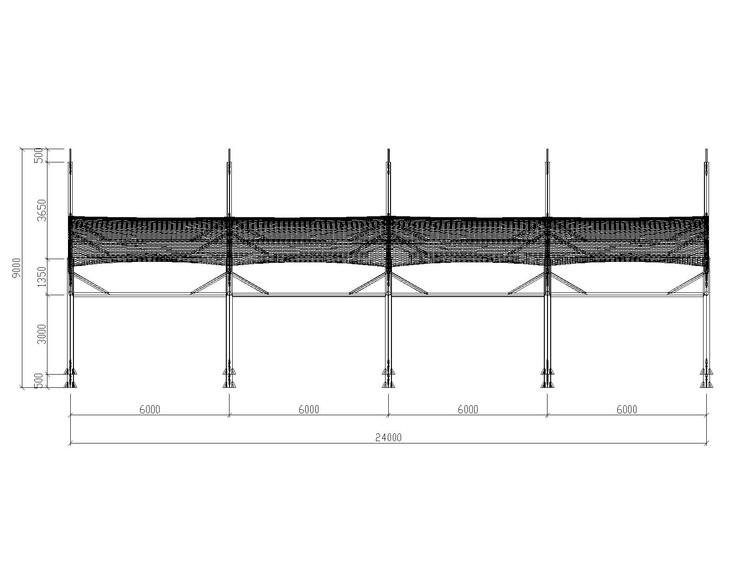

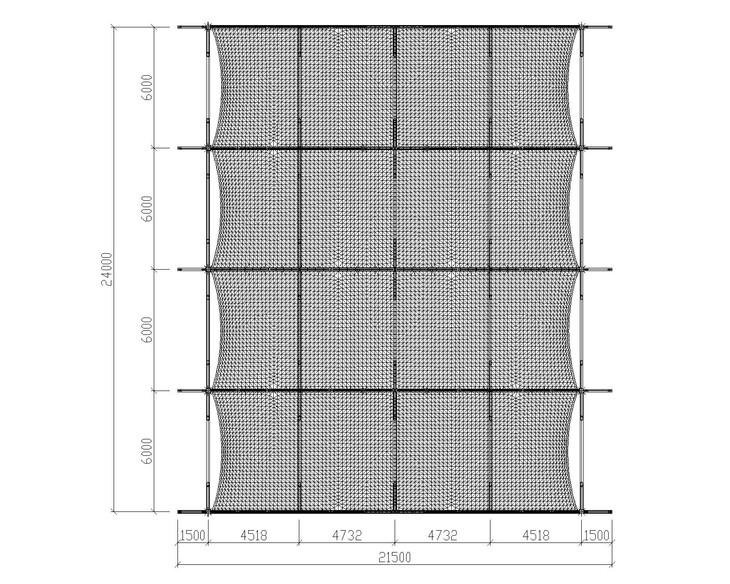

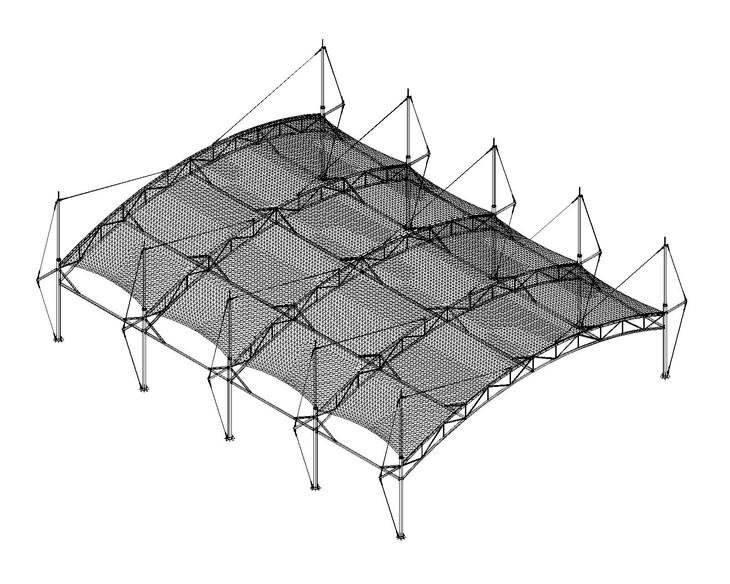

Design & Model

    Tensile Shade Structure for Outdoor Tennis Court Design & Model





       Step 1: Design

       BDiR use the latest tensile structural design software to produce
       detailed tensile structural designs.

       BIM model design (building information modeling),
       finding and load analysis,  integrated building design,
       joint force analysis, membrane cutting analysis,
       construction process simulation, numerical wind tunnel simulation.
    Step 2: Membrane Fabrication

    Membrane fabrication plays an important role in the tensile structure.

    There are many fabrics (PVC, PVDF, PTFE, ETFE) in the market, they come from all over the world, they have different characteristics and prices, different welding or joining techniques. We will make the best choices from structural design, project location and our customer budget.
      Step 3. Steel Fabrication

      Tensile structure are made of steel structural members that are welded
      and painted in our factory.

      We will conduct the following procedures with high standards:
      Paint thickness detection, ultrasonic testing,
      magnetic particle testing,
    high-strength bolt torque testing,
      cable pre-tensioning, rust removal ,

      pre-assembly inspection, painting, etc.
    Step 4: Cable Fabrication

    Cable and hardware fittings are procured from the most reliable and certified vendors of the industry in compliance with the international quality standards.

    Cable fabrication are proceed under guidance of our skilled and experienced experts.
      Step 5: Installation

      The installation of the tension structure is critical to the overall success
      of the project.

      We will provide on site installation service. Our project manager will work
      with the client to coordinate the structure installation on site.  Including
      steel structure installation, membrane lifting and measure tension. If you
      prefer self-installation, we'll send you detailed instructions so it can be
      easily installed.

    Step 6: The Future

    Our service will not end at the time of delivery and installation!

    Because we only use the highest quality membrane materials and steel frames, cables and parts. You can rest assured that your new tensile structure is built to last. Besides, Tensile structure does not require much maintenance and we offer a up to 35 year warranty.



    Mr. Kuo, Police Station Chief
    Tennis court tensile structure has provided us with a good exercise place. Now, whether it is sunny or rainy, everyone can play tennis happily. "
