Tensile Structure for Multi-Event Sports, Basketball & Badminton Court - Shanghai, China


Basketball is one of the favorite sports for teenagers. The basketball court in Vanke residence community was originally open-air, without any roof covering, and it could not be shaded and sheltered. The weather has directly affected the usage rate of the court.
Mr. Green, the director of residential property, hoped to provide owners with a well-lit awning to create a year-round and all-weather space for people. In May 2017, He contacted BDiR, because of the limited funds, He wanted to save costs.

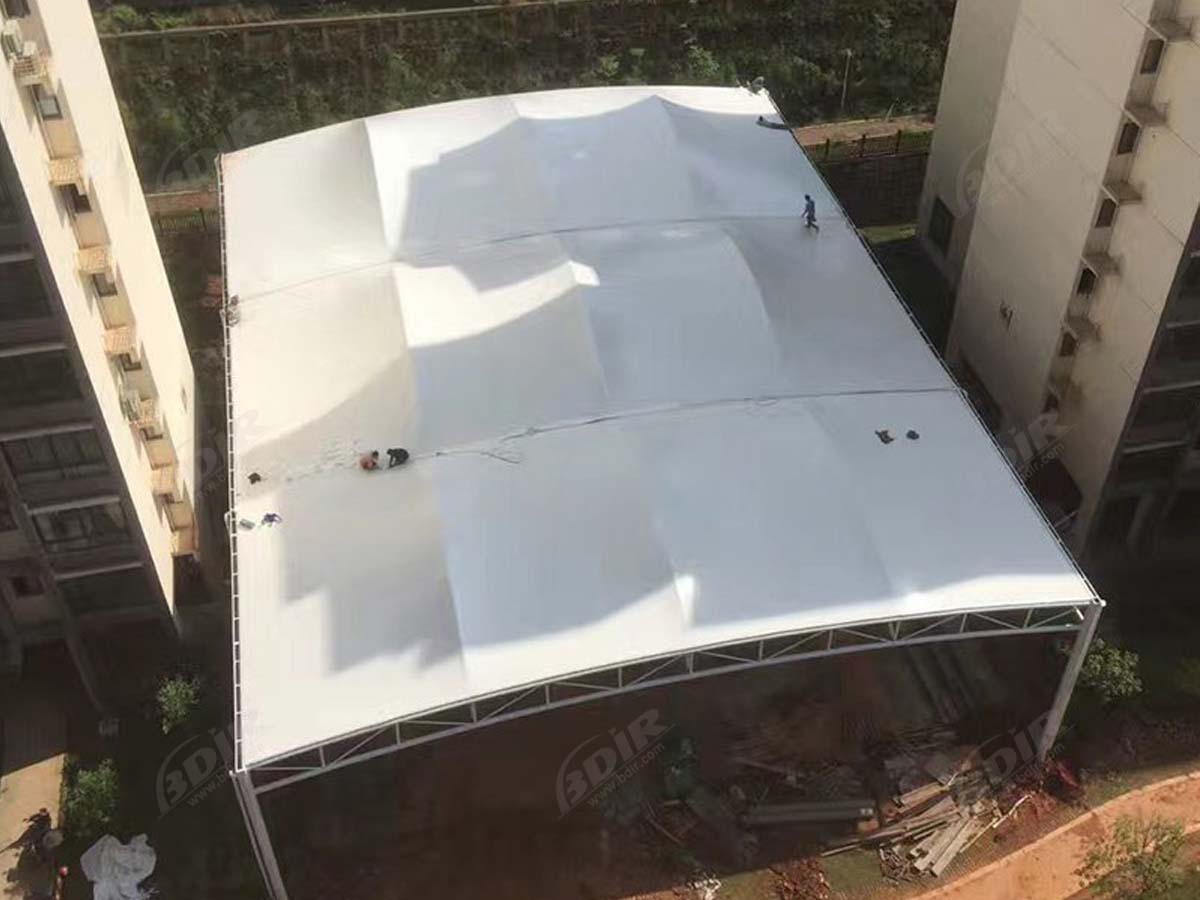

BDiR carefully considers the opinions of the property. Proposed a perfect solution. We installed column around the full-size basketball court, each column up to 10 meters high. The lightweight awning is covered with the PVDF membrane with very good light transmission. Due to the light weight of tensile structure and the good stress point, the large span and the middle column are well realized, effectively increasing the overall area of the space, and the roofing is also Cover the seat area on both sides.
During the rainy season, the space frame structures can be kept as durable as possible by the flushing of rainwater. During the day, most of the ultraviolet rays can be blocked because of the excellent shading advantages of the material. In addition, good light transmission allows sunlight to illuminate the stadium without a dark environment. This can reduce the resource loss for lighting and achieve energy saving and environmental protection.
Mr.Green is very satisfied with this energy efficient construction.


    • √. Large Span: Tensile Structures can create an expansive covered area, exceed to 200m.

    • √. Unique Design: Tensile fabric Structure gives architects, designers, and engineers the opportunity to experiment with form and create visually exciting and iconic structures.

    • √. Various Shape: Changeful supporting structure can make lots of different shapes of tensioned structure with flexible membrane.

    • √. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs.

    • √. Easy to Install: Faster and more cost-effective in comparison to traditional construction projects.

    • √. Weatherproof: Durable and designed to withstand even the most severe weather conditions. Provide protection from both the rain and sun.

    • √. Excellent Durability: Fabric tensile Structure is characterized by durability and longevity, can be built in different areas around the world, from the frigid arctic pole to the scorching desert heat.

    • √. ECO Friendly: Have high sun reflectivity and low solar absorption. As a result, less energy is used in the building, ultimately reducing the cost of electricity.

    • √. Low maintenance Needs: Tensile membrane Structures require minimal maintenance for clients, whether use of PVC, PVDF, PTFE or ETFE.

    • √. Outstanding Natural Daylighting: Membrane is translucent, In daylight, tension structures could offer rich soft diffused naturally daylight space, and at night, artificial lighting can make it bright and colorful.

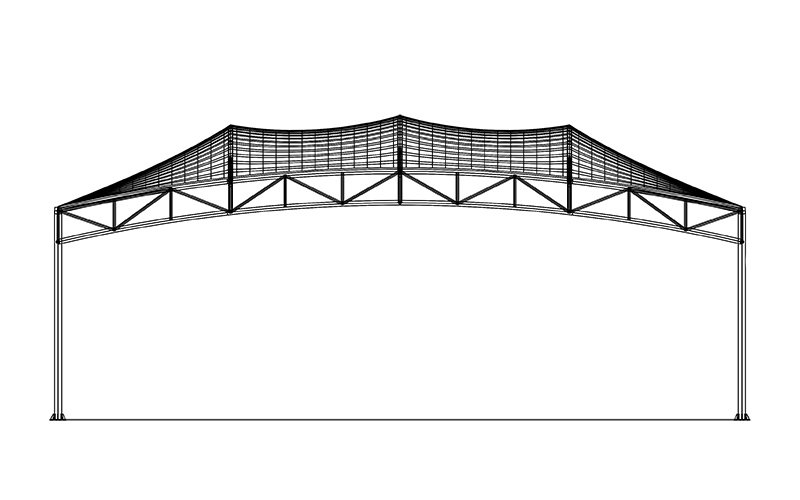

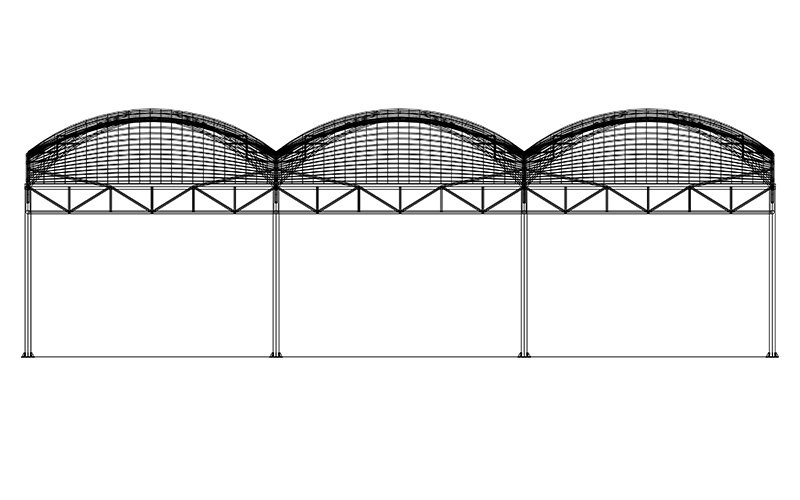

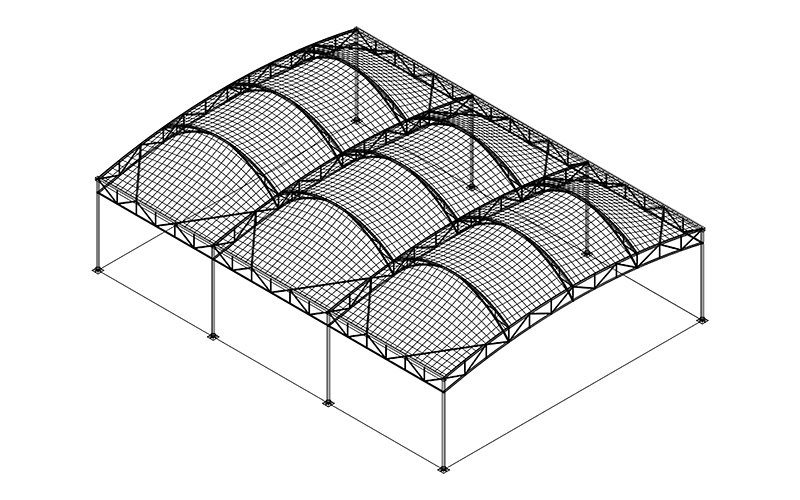

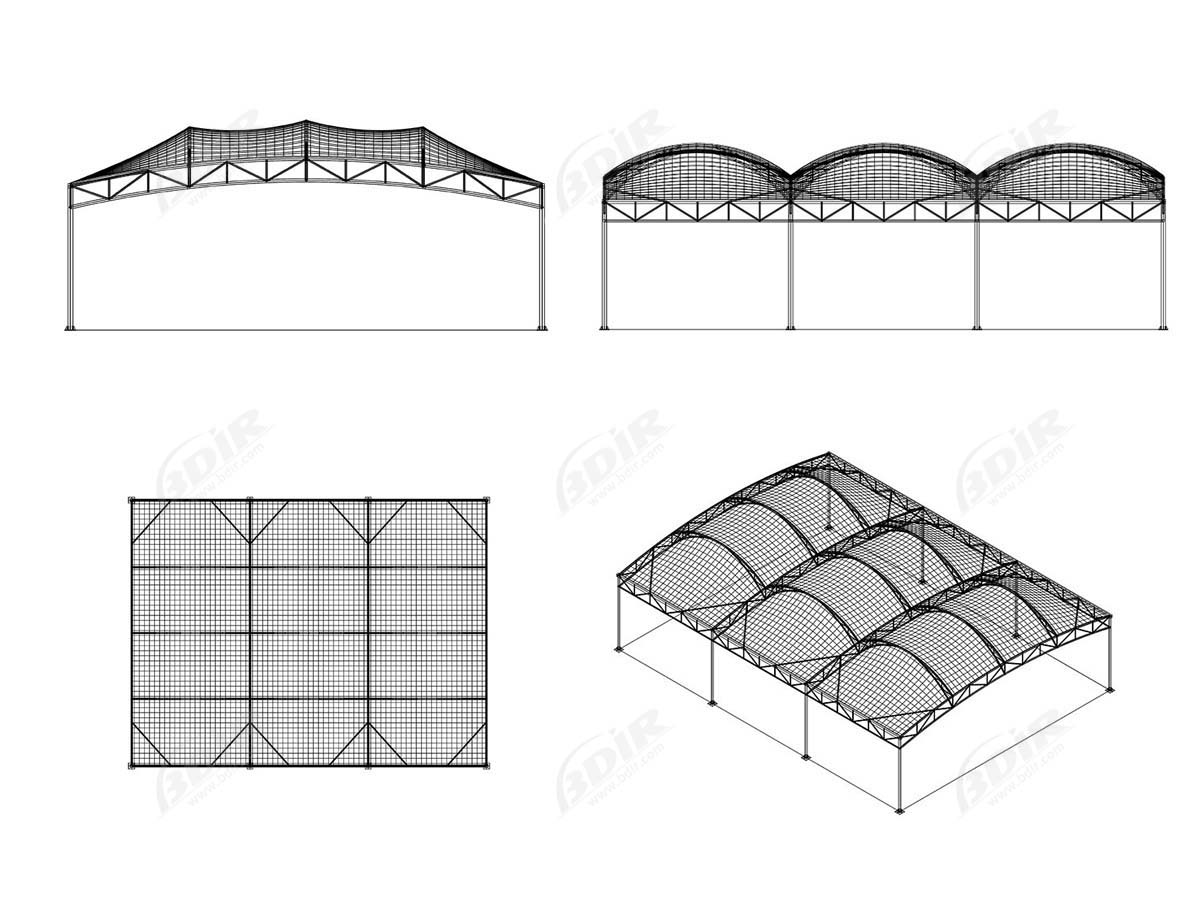

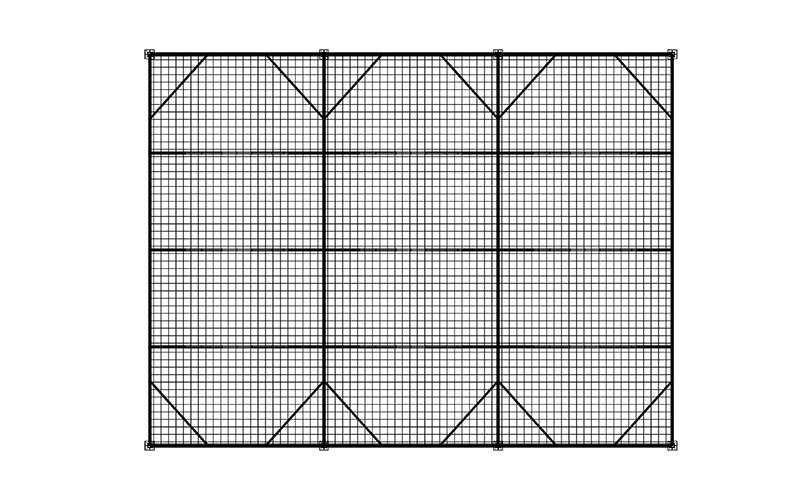

Design & Model


       Step 1: Design

       BDiR use the latest tensile structural design software to produce
       detailed tensile structural designs.

       BIM model design (building information modeling),
       finding and load analysis,  integrated building design,
       joint force analysis, membrane cutting analysis,
       construction process simulation, numerical wind tunnel simulation.
    Step 2: Membrane Fabrication

    Membrane fabrication plays an important role in the tensile structure.

    There are many fabrics (PVC, PVDF, PTFE, ETFE) in the market, they come from all over the world, they have different characteristics and prices, different welding or joining techniques. We will make the best choices from structural design, project location and our customer budget.
      Step 3. Steel Fabrication

      Tensile structure are made of steel structural members that are welded
      and painted in our factory.

      We will conduct the following procedures with high standards:
      Paint thickness detection, ultrasonic testing,
      magnetic particle testing,
    high-strength bolt torque testing,
      cable pre-tensioning, rust removal ,

      pre-assembly inspection, painting, etc.
    Step 4: Cable Fabrication

    Cable and hardware fittings are procured from the most reliable and certified vendors of the industry in compliance with the international quality standards.

    Cable fabrication are proceed under guidance of our skilled and experienced experts.
      Step 5: Installation

      The installation of the tension structure is critical to the overall success
      of the project.

      We will provide on site installation service. Our project manager will work
      with the client to coordinate the structure installation on site.  Including
      steel structure installation, membrane lifting and measure tension. If you
      prefer self-installation, we'll send you detailed instructions so it can be
      easily installed.

    Step 6: The Future

    Our service will not end at the time of delivery and installation!

    Because we only use the highest quality membrane materials and steel frames, cables and parts. You can rest assured that your new tensile structure is built to last. Besides, Tensile structure does not require much maintenance and we offer a up to 35 year warranty.



    Mr.Green, Engineer
    The basketball court tensile structure means a lot to us, we no longer have to worry about the glare of the sun, or the rain. This is a ECO friendly building. "
