Stadium & Grandstand Tensile Structure of Shenzhen Foreign Languages School, China


  •  Date Completed  June, 2016
     Location  Shenzhen, China
     Project Area  2300 square meters
     Membrane Material  PVDF
     Fabric Color  White
     Shape  Arc, Barrel Vault
     Structure  Q235 Steel, Hot Dip Galvanized
     Warranty  20 Years
     Delivery Time  About 30 Days after confirm deposit
     Payment  T/T, LC
     Brand  BDiR
     Place of Origin  Shenzhen, China

  • INQUIRY NOW
Stadium & Grandstand Tensile Structure of Shenzhen Foreign Languages School, China

DESCRIPTION

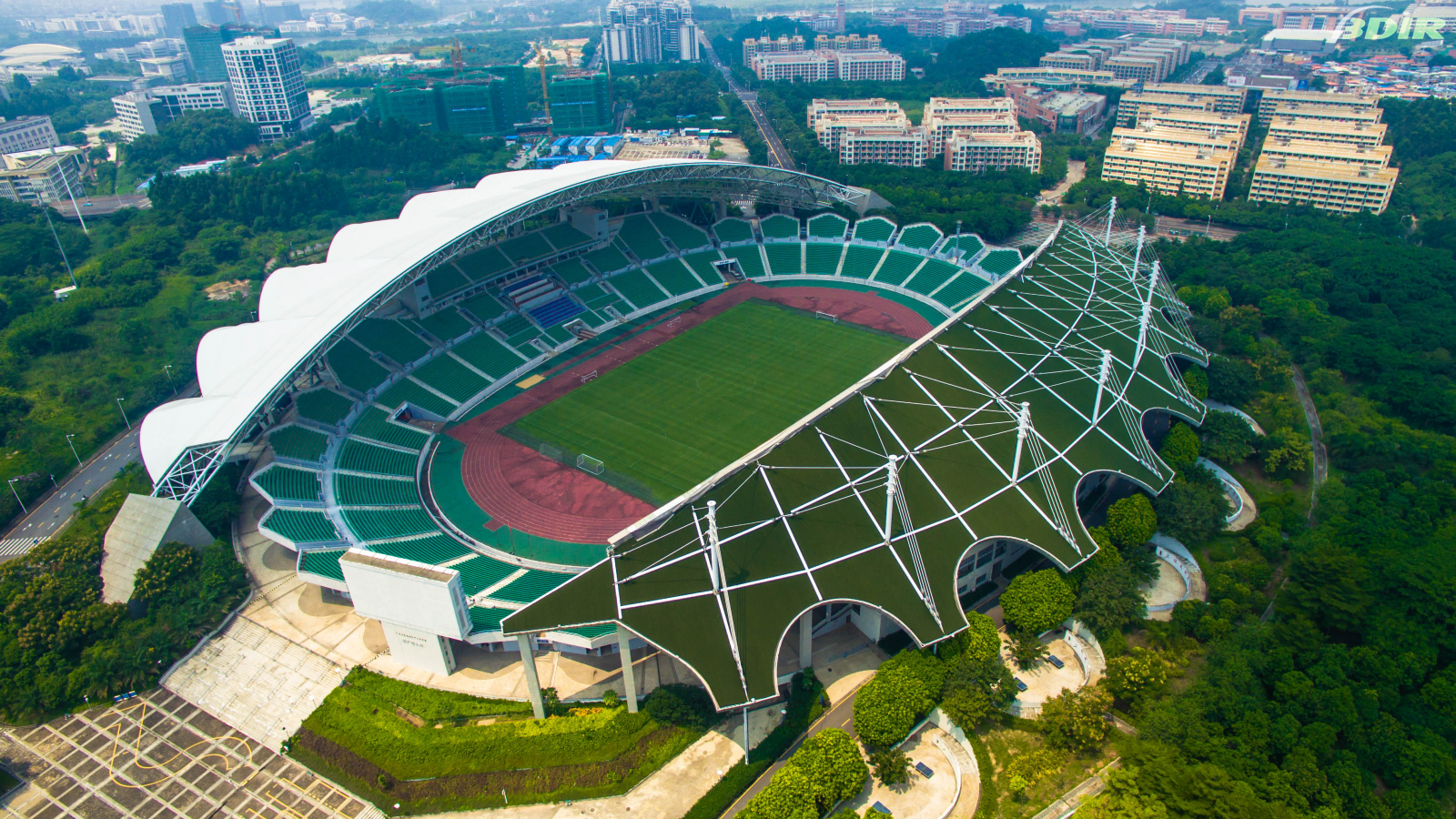

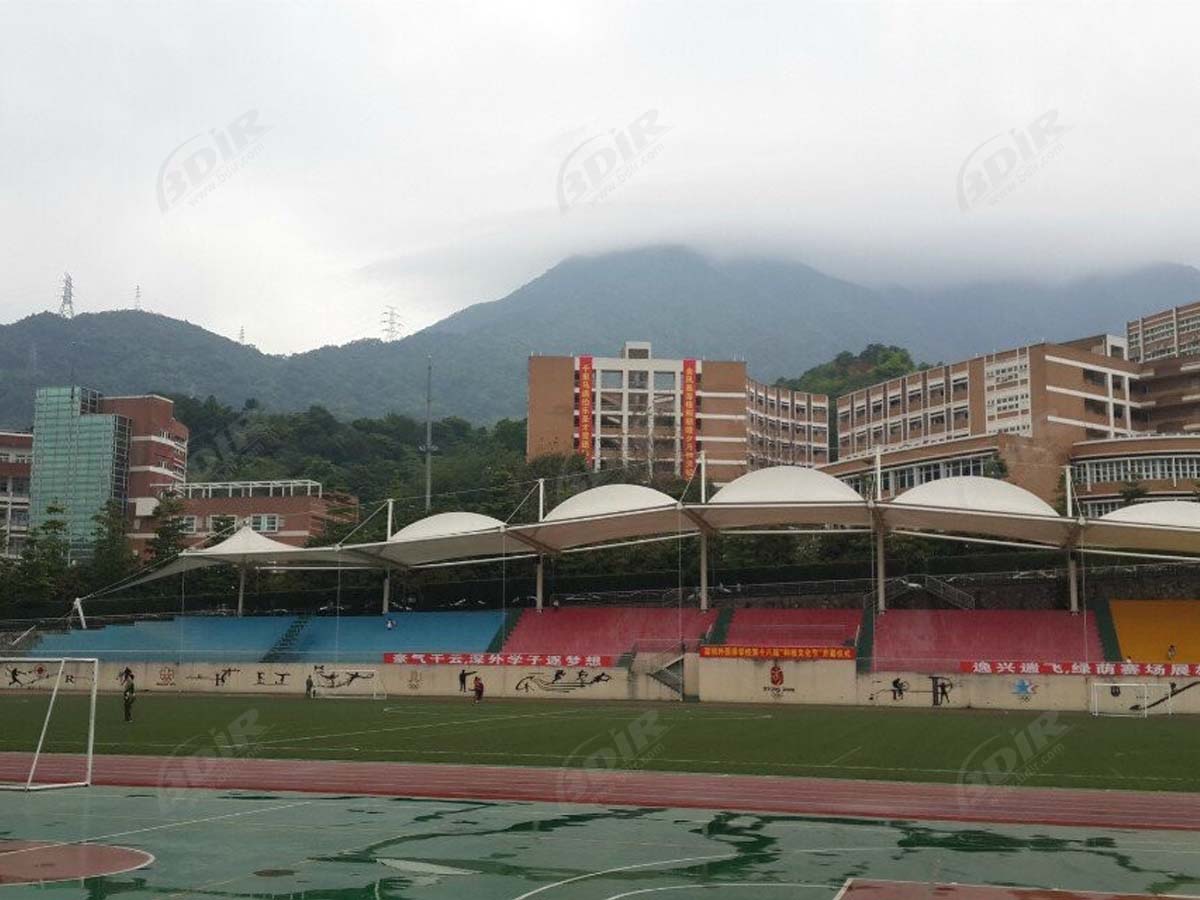

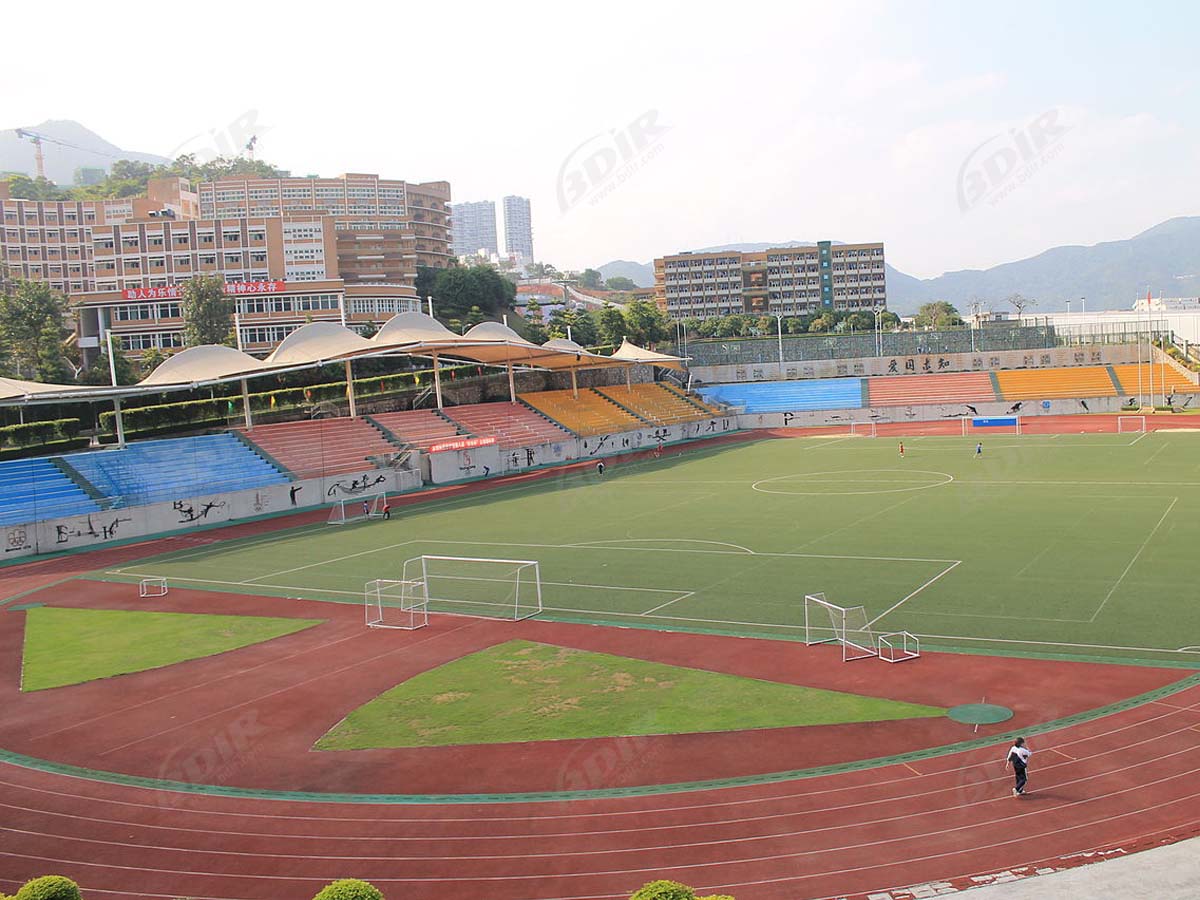

Shenzhen Foreign Languages School, located in Shenzhen, China. Founded in 1990 and is a provincial senior middle school.

The school wanted to change their stadium area into a more efficient space because it is not effective when the weather is bad. We put forward the concept of covering whole the stadium so that students can enjoy outdoor sports throughout the year, not only in rainy days but also in hot summer.

Luis Lee, School Engineering Manager, contacted BDiR in early February 2016. After our on-the -top visiting and repeated considerations, we have provided this grandstand roof structure for The school. We designed large tension membrane on both sides and wavy shape membrane in the middle. This shape is beautiful and simple. As energetic as young.

The BDiR team only completed whole project in just 2 weeks! We reasonably avoid The school's class time to carry out construction to avoid noise pollution to students. Received a high recognition from Luis Lee.

SPECIFICATIONS

    • √. Large Span: Tensile Structures can create an expansive covered area, exceed to 200m.

    • √. Unique Design: Tensile fabric Structure gives architects, designers, and engineers the opportunity to experiment with form and create visually exciting and iconic structures.

    • √. Various Shape: Changeful supporting structure can make lots of different shapes of tensioned structure with flexible membrane.

    • √. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs.

    • √. Easy to Install: Faster and more cost-effective in comparison to traditional construction projects.

    • √. Weatherproof: Durable and designed to withstand even the most severe weather conditions. Provide protection from both the rain and sun.

    • √. Excellent Durability: Fabric tensile Structure is characterized by durability and longevity, can be built in different areas around the world, from the frigid arctic pole to the scorching desert heat.

    • √. ECO Friendly: Have high sun reflectivity and low solar absorption. As a result, less energy is used in the building, ultimately reducing the cost of electricity.

    • √. Low maintenance Needs: Tensile membrane Structures require minimal maintenance for clients, whether use of PVC, PVDF, PTFE or ETFE.

    • √. Outstanding Natural Daylighting: Membrane is translucent, In daylight, tension structures could offer rich soft diffused naturally daylight space, and at night, artificial lighting can make it bright and colorful.

DESIGN & MODEL


    Stadium & Grandstand Tensile Structure of Shenzhen Foreign Languages School Design



    Stadium & Grandstand Tensile Structure of Shenzhen Foreign Languages School Model

INSTALLATION


       Step 1: Design

       BDiR use the latest tensile structural design software to produce
       detailed tensile structural designs.


       Including:
       BIM model design (building information modeling),
       finding and load analysis,  integrated building design,
       joint force analysis, membrane cutting analysis,
       construction process simulation, numerical wind tunnel simulation.
    Step 2: Membrane Fabrication

    Membrane fabrication plays an important role in the tensile structure.

    There are many fabrics (PVC, PVDF, PTFE, ETFE) in the market, they come from all over the world, they have different characteristics and prices, different welding or joining techniques. We will make the best choices from structural design, project location and our customer budget.

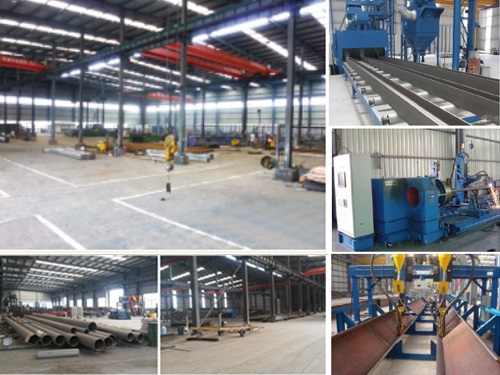

      Step 3. Steel Fabrication

      Tensile structure are made of steel structural members that are welded
      and painted in our factory.


      We will conduct the following procedures with high standards:
      Paint thickness detection, ultrasonic testing,
      magnetic particle testing,
    high-strength bolt torque testing,
      cable pre-tensioning, rust removal ,

      pre-assembly inspection, painting, etc.

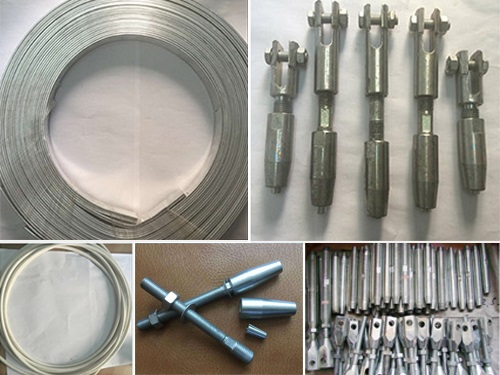

    Step 4: Cable Fabrication

    Cable and hardware fittings are procured from the most reliable and certified vendors of the industry in compliance with the international quality standards.

    Cable fabrication are proceed under guidance of our skilled and experienced experts.

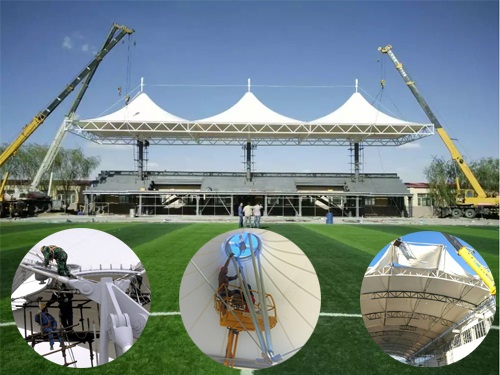

      Step 5: Installation

      The installation of the tension structure is critical to the overall success
      of the project.


      We will provide on site installation service. Our project manager will work
      with the client to coordinate the structure installation on site.  Including
      steel structure installation, membrane lifting and measure tension. If you
      prefer self-installation, we'll send you detailed instructions so it can be
      easily installed.


    Step 6: The Future

    Our service will not end at the time of delivery and installation!

    Because we only use the highest quality membrane materials and steel frames, cables and parts. You can rest assured that your new tensile structure is built to last. Besides, Tensile structure does not require much maintenance and we offer a up to 35 year warranty.
